Overview
The ABPG FPSD is a convenient and economical backup for your Man-Aboard System. Note: ABPG FPSD Should Only be used as a Forklift Battery Puller for batteries stored on the Bottom Rack.
| Features | Benefits |
|---|---|

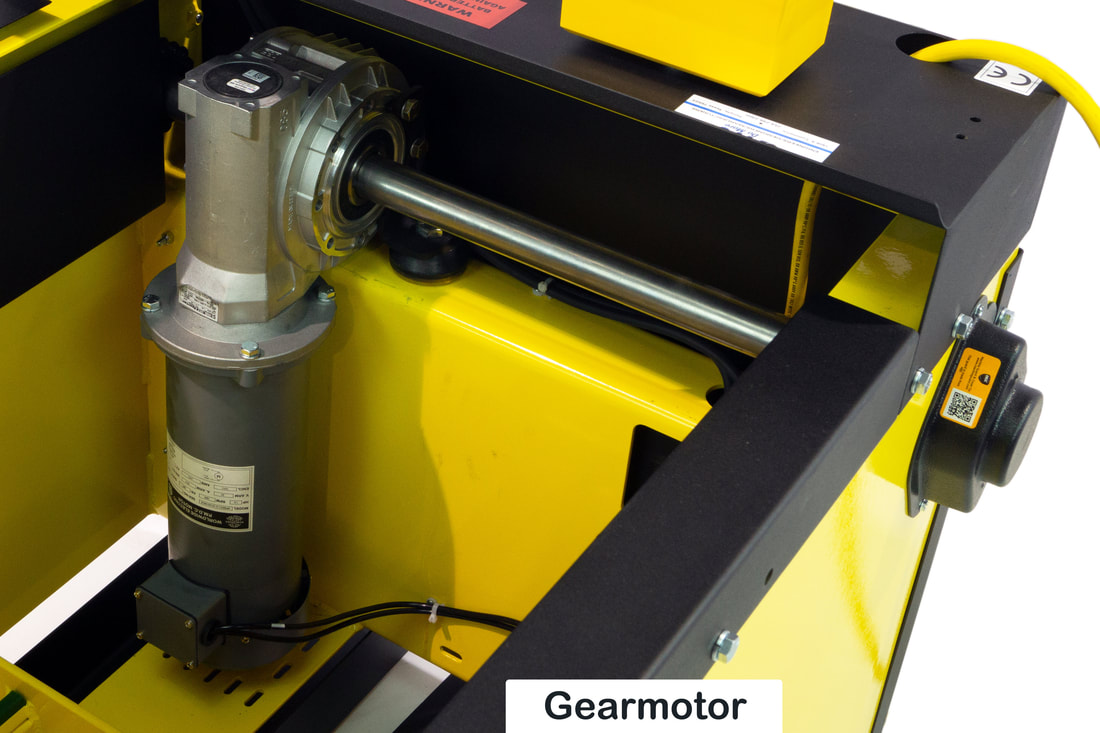

| All electric. | Cleaner. No hydraulic oil spills, ever! Smoother and quieter to operate. |
| Available in 24, 32, and 40 inch widths. Can be ordered as side discharge. | Increased versatility. increased battery sizes & capacities. |
| More efficient. | Longer lasting battery life. |

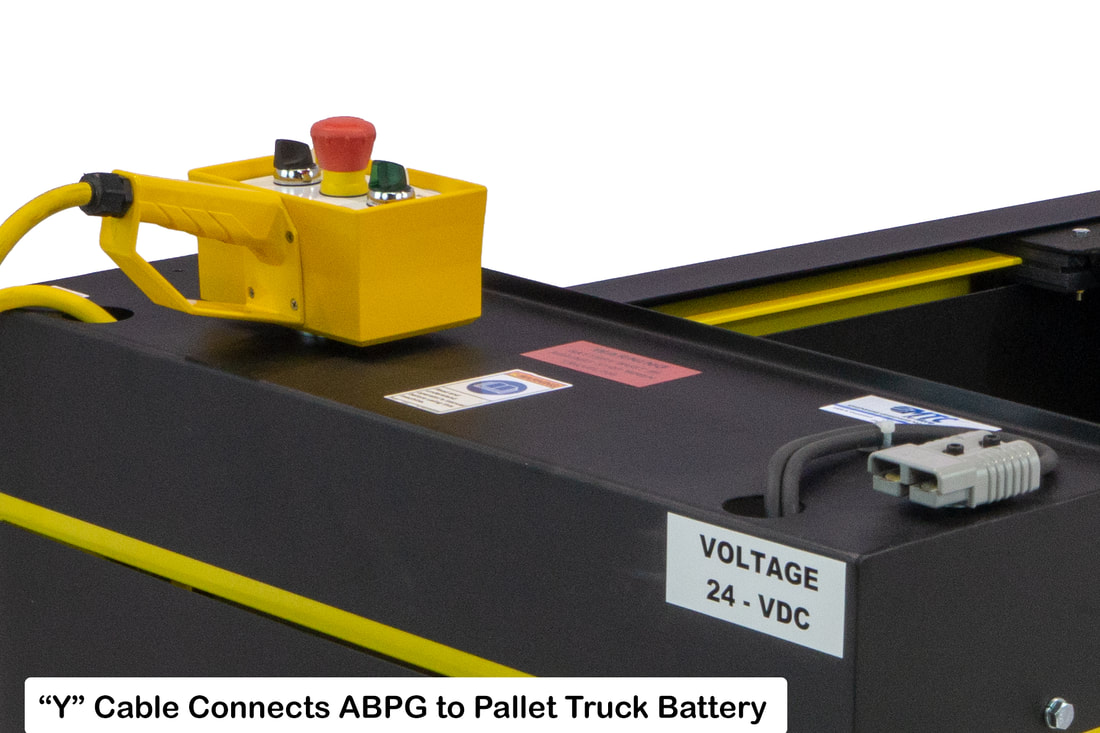

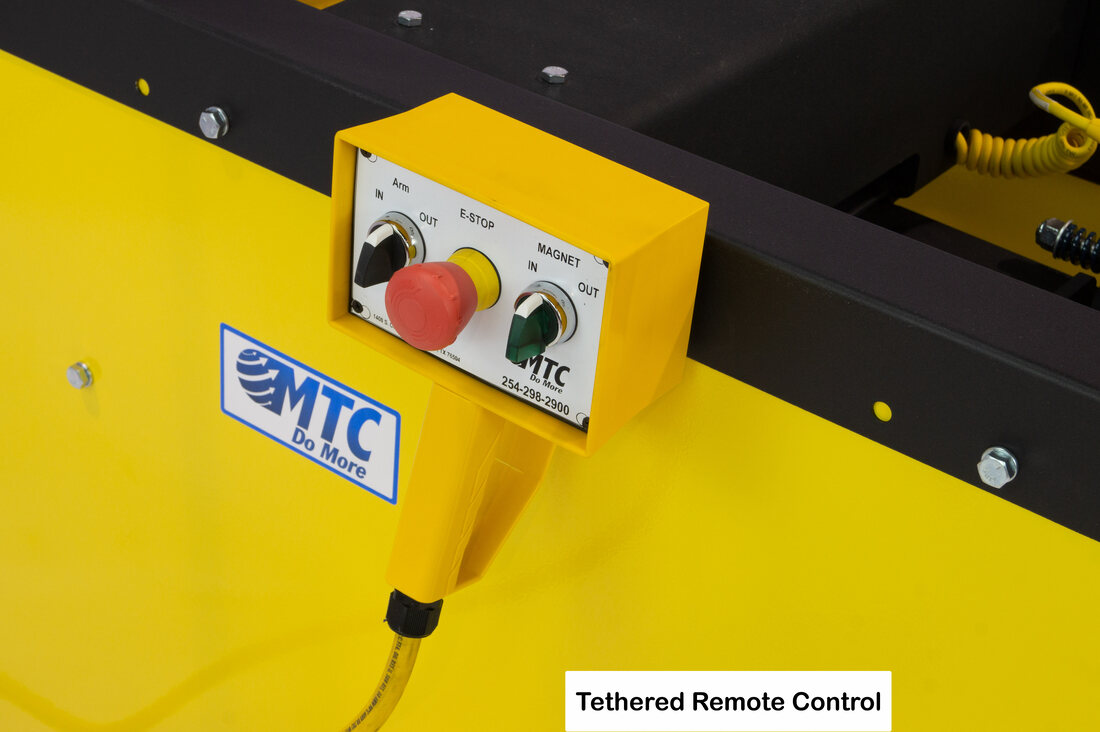

| Tethered remote has magnet on the back. | Operator safety/convenience. remote can be placed anywhere on the unit. |

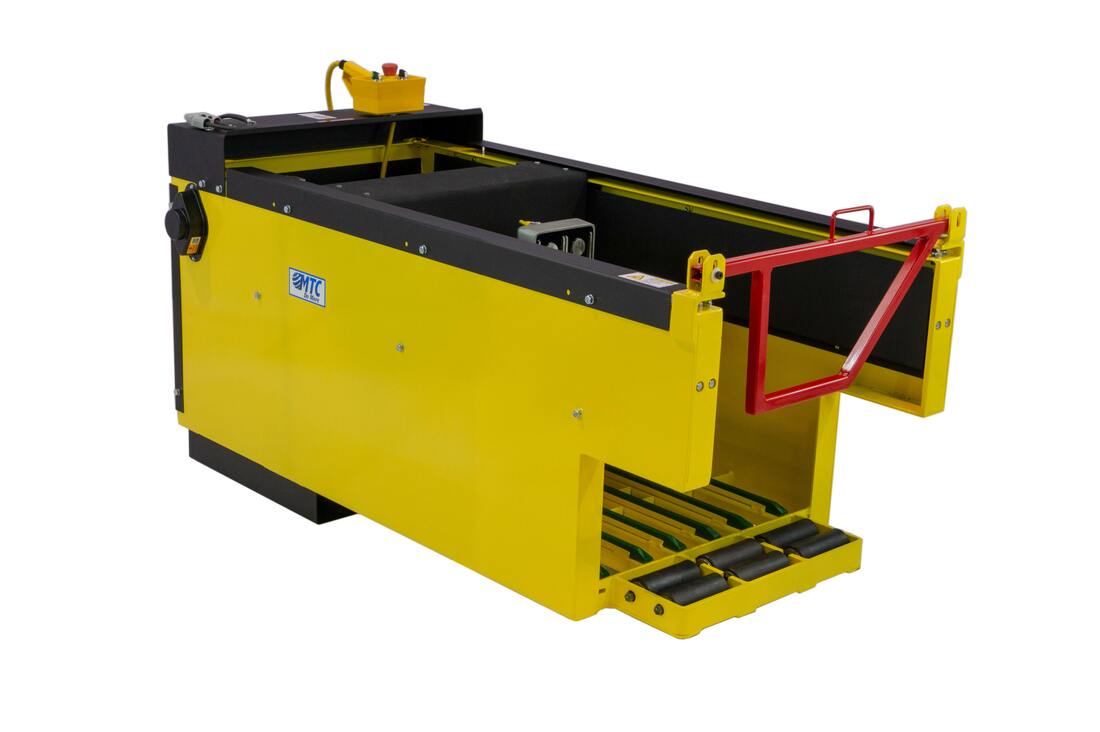

The ABPG is a cutting-edge solution for battery replacement in fork trucks. This forklift battery puller allows customers to easily change batteries in fork trucks of varying sizes. Moreover, the extraction system can be customized to meet customer preferences, with options for magnet or vacuum cup attachments available.

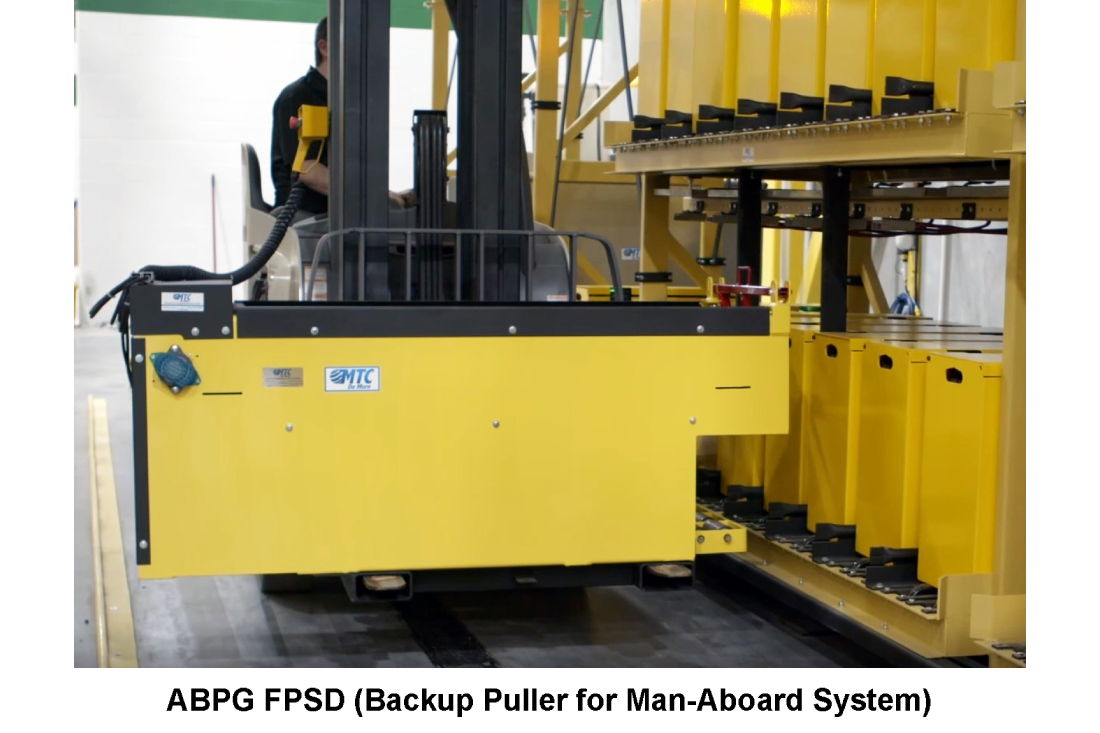

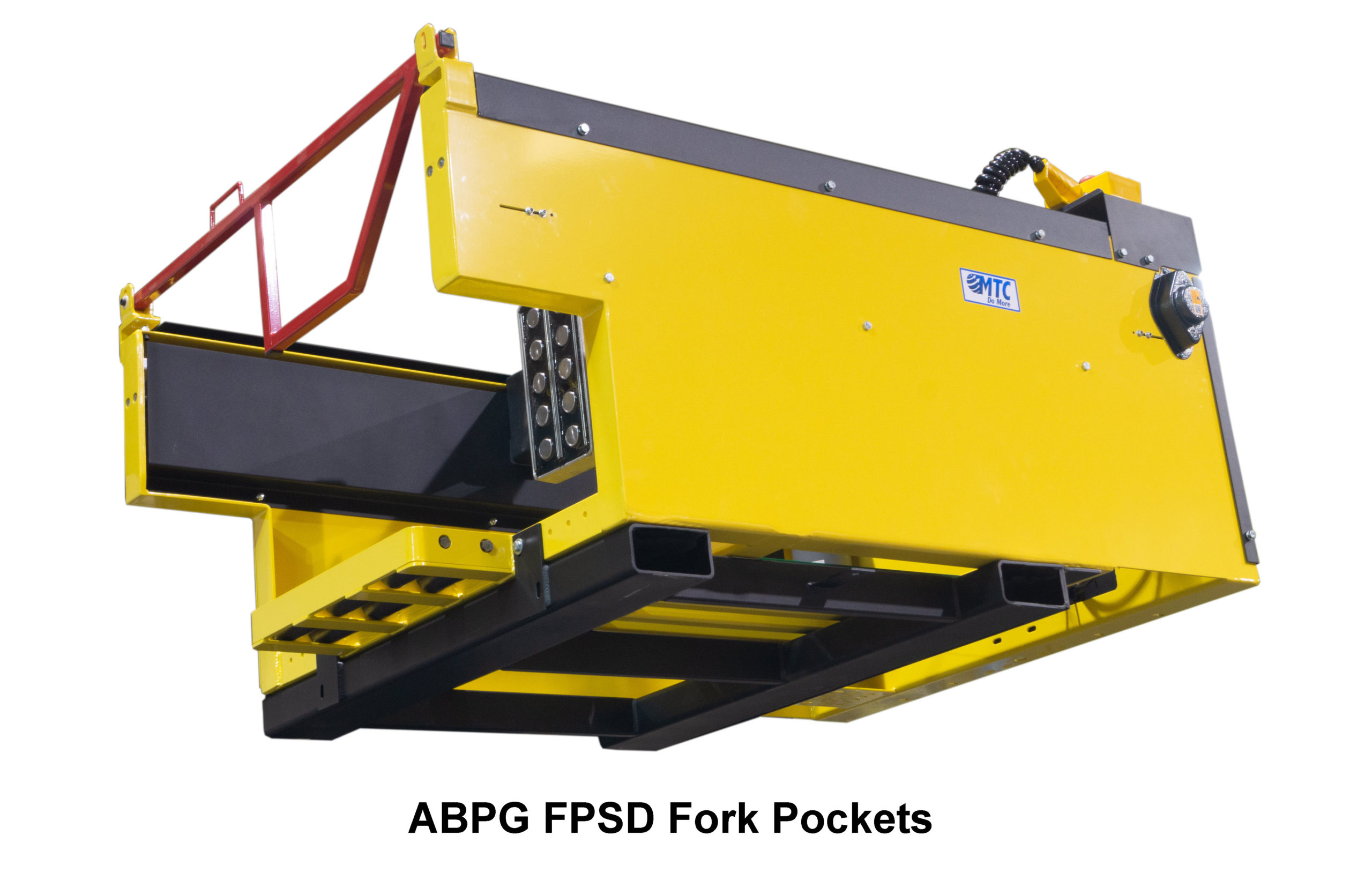

To enhance its versatility, the ABPG can also be equipped with Side-Mount Fork Pockets as a backup option for battery changing in case of a failure in the man-aboard system. This feature further enhances the flexibility and reliability of the ABPG for efficient battery replacement operations.
It is recommended by MTC to use this unit for battery replacement only on single-level battery racks or the bottom level of multi-level systems to ensure safe and effective battery-changing processes.
Options include:

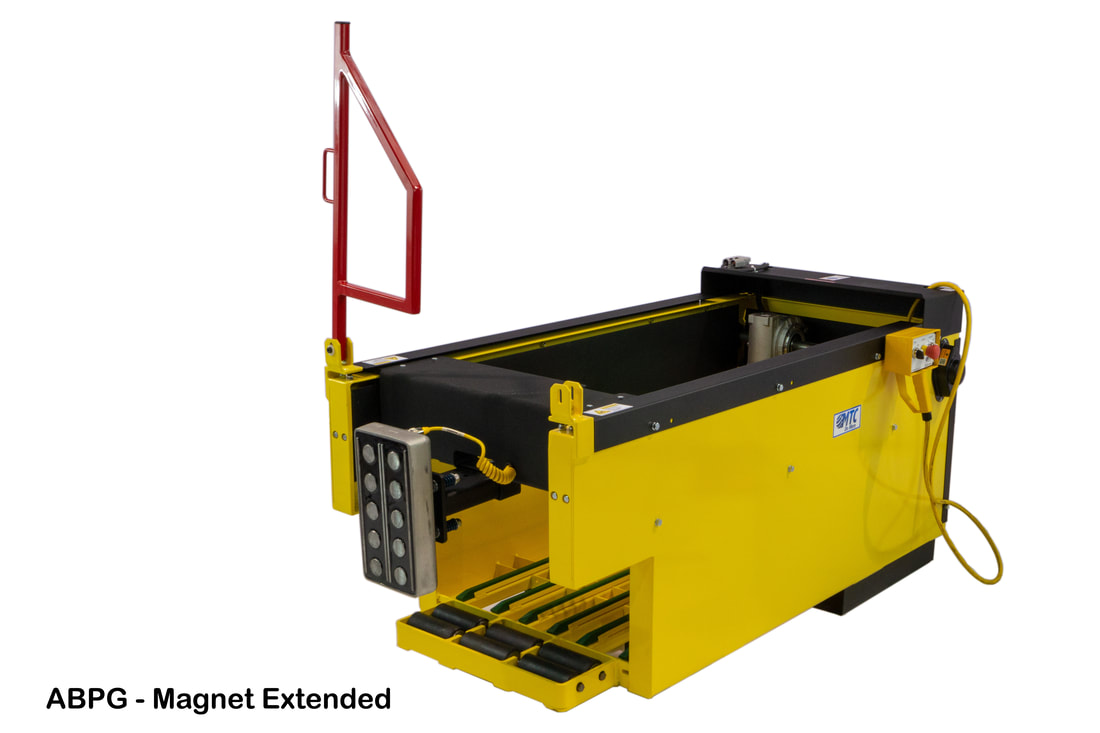

- Magnet extraction (M)
- Vacuum extraction (V)

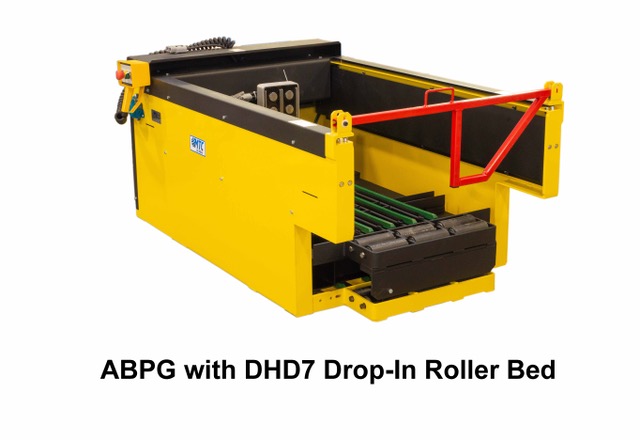

- Dual height drop-in bed & rack (DHDX-KIT)

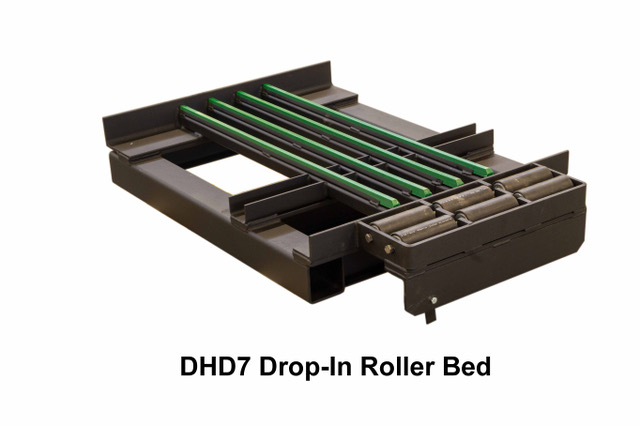

- Dual height drop-in bed (DHDX)
- Dual height drop-in bed rack (DHD-RACK)
Specifications
| UNIT | ABPG-24 | ABP-32 | ABP-40 |
|---|---|---|---|
| Capacity with 48"/121.9 cm Forks | 4000lb/1814.4kg | 4000lb/1814.4kg | 4000lb/1814.4kg |
| Capacity with 60"/152.4 cm Forks | 5000lb/2268kg | 5000lb/2268kg | 5000lb/2268kg |
| Overall Length | 68in/172.7cm | 68in/172.7cm | 68in/172.7cm |
| Overall Width | 33.5in/85.1cm | 41.5in/105.4cm | 49.5in/125.7cm |
| Overall Height | 30.5in/77.5cm | 30.5in/77.5cm | 30.5in/77.5cm |
| Outrigger Cutout Depth | 10.375in/26.4cm | 10.375in/26.4cm | 10.375in/26.4cm |
| Outrigger Cutout Width | 4.25in/10.8cm | 8.25in/21cm | 12.25in/321.1cm |
| Outrigger Cutout Height | 13.5in/34.3cm | 13.5in/34.3cm | 13.5in/34.3cm |
| Compartment Depth (ext. arm retracted) | 50.5in/128.3cm | 50.5in/128.3cm | 50.5in/128.3cm |
| Compartment Depth (ext. arm extended) | 45.5in/115.6cm | 45.5in/115.6cm | 45.5in/115.6cm |
| Compartment Width | 24.75in/62.9cm | 32.75in/83.2cm | 40.75in/103.5cm |
| Recommended Minimum Battery Width | 6in/15.2cm | 6in/15.2cm | 6in/15.2cm |
| Recommended Minimum Battery Height | 19in/48.3cm | 19in/48.3cm | 19in/48.3cm |
| Recommended Maximum Battery Height | 38in/96.5cm | 40in/101.6cm | 48in/121.9cm |
| Max Fork Width (FP9) | 9.25in/23.5cm | 9.25in/23.5cm | 9.25in/23.5cm |
| Max Outside to Outside distance of Forks (FP9) | 27in/68.6cm | 27in/68.6cm | 27in/68.6cm |
| Minimum Distance Between Forks (FP9) | 8.5in/21.6cm | 8.5in/21.6cm | 8.5in/21.6cm |
