| Features | Benefits |
|---|---|

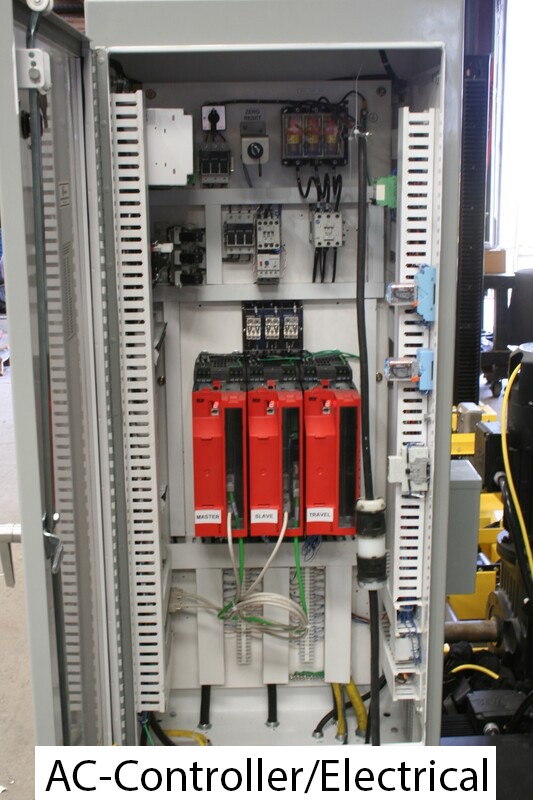

| AC-controlled gear-reduction drive system | Controls motor speed, lift, torque settings & braking. |

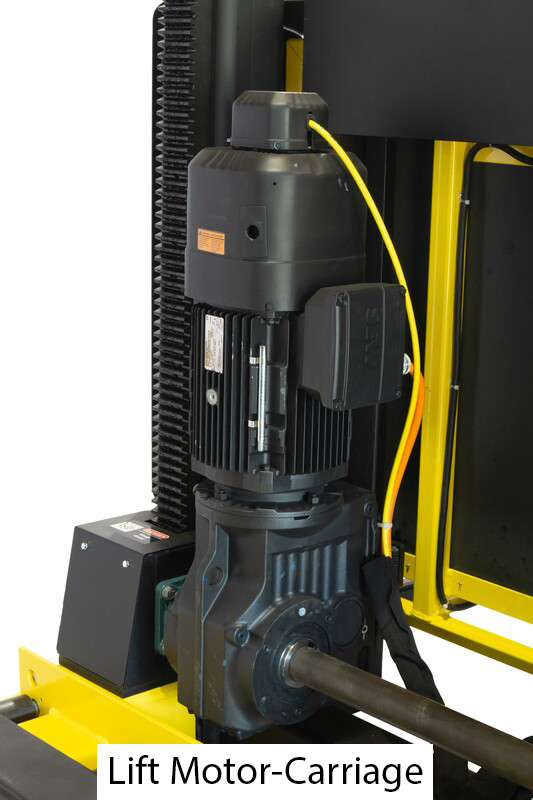

| Two synchronized electric gearmotors lift carriage | Stacks batteries in racks up to 6 high. |

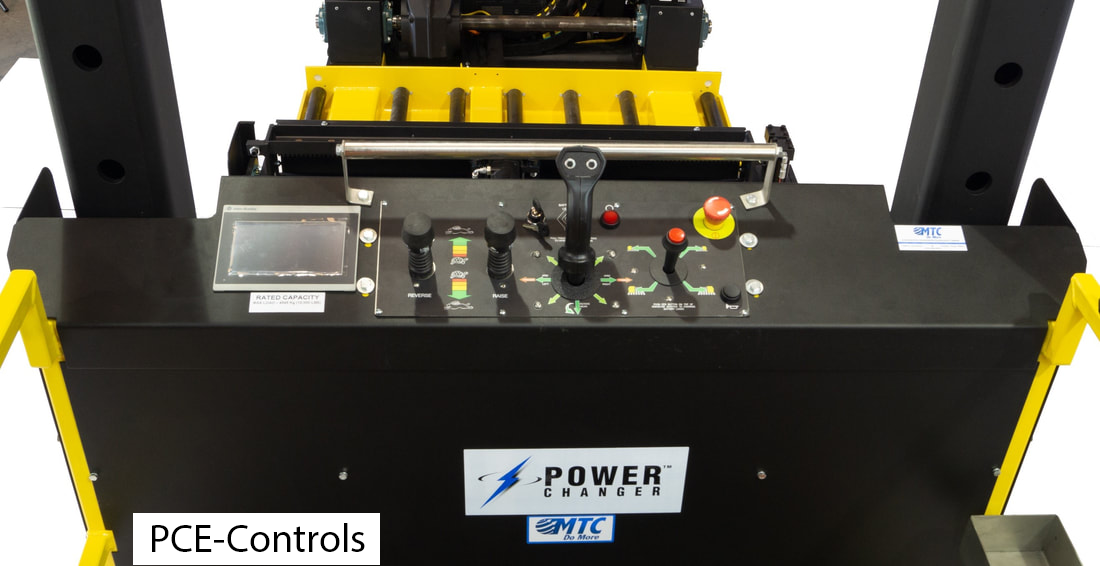

| Eight-way multi-function joystick | Controls the arm movement and allows the operator to rotate and slide the pivot arm in one smooth motion. |

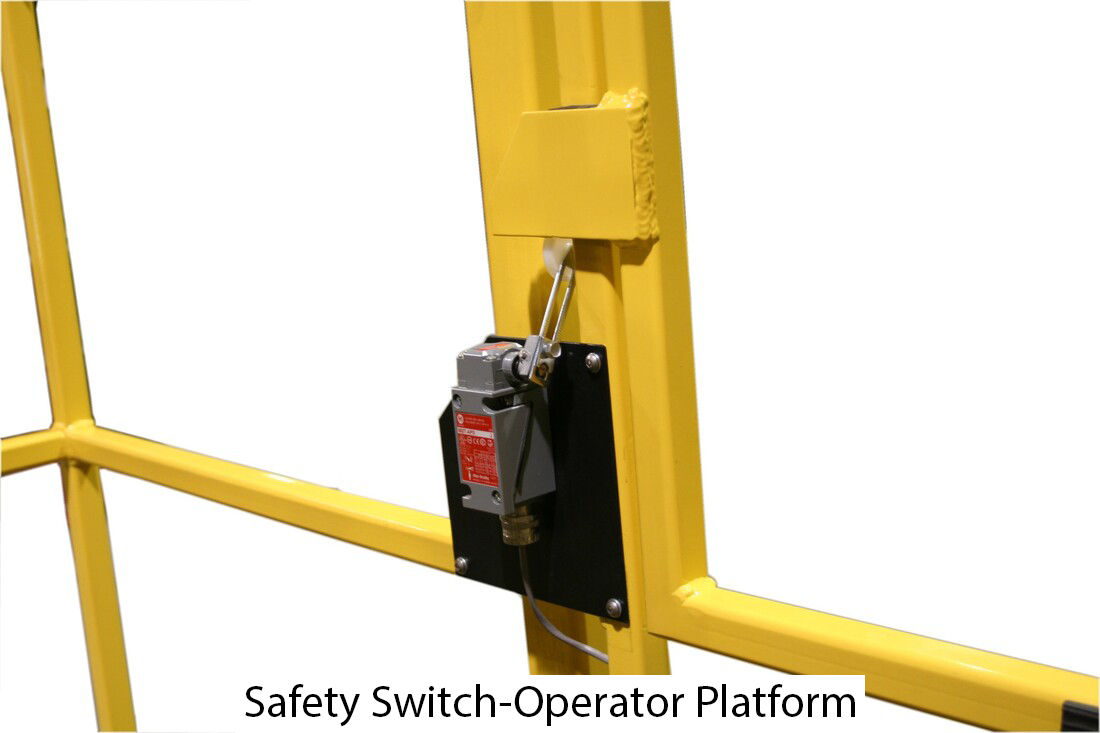

| Operator’s Platform Safety Switch | Allows for activation of the controls only when the operator is standing on the platform |
Options include:

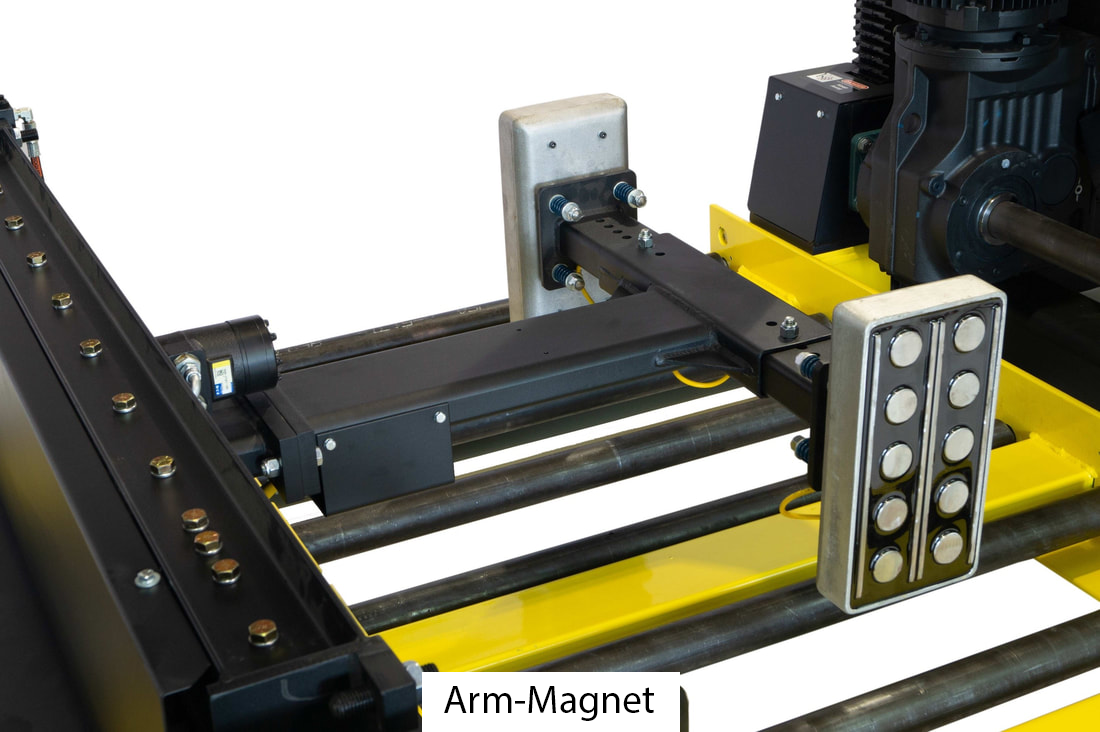

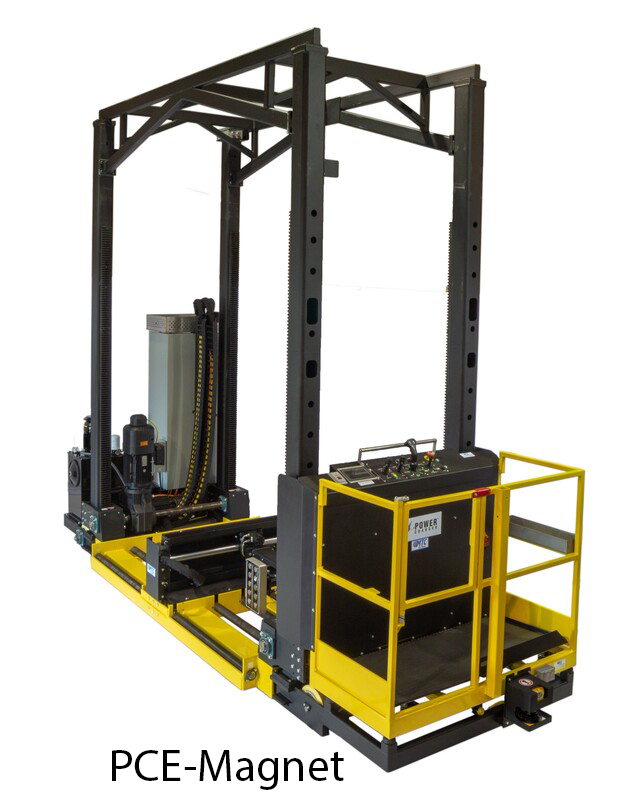

- Magnet Extraction (-M)
- Vacuum Extraction (-V)
- Hydraulic Extension Arm
- Carriage Extension Roller
Specifications
| Model | PCE-1-40 | PCE-2-24 | PCE-2-32 | PCE-2-40 |
|---|---|---|---|---|
| Overall Length | 147.625”/375 cm | 154/625”/392.7 cm | 172.625”/438.5 cm | 188.625”/479.1 cm |
| Overall Width | 67.25”/1708 mm | 67.25”/1708 mm | 67.25”/1708 mm | 67.25”/170.8 cm |
| Max Battery Length | 44”/111.8 cm | 44”/111.8 cm | 44”/111.8 cm | 44”/111.8 cm |
| Max Battery Width | 40”/101.6 cm | 23”/58.4 cm | 31”/78.7 cm | 40”/101.6 cm |
| Max Battery Height | 32”/81.3 cm | 32”/81.3 cm | 32”/81.3 cm | 32”/81.3 cm |
| Max Load Capacity | 10,000 Lbs./4536 kgs. | 10,000 Lbs./4536 kgs. | 10,000 Lbs./4536 kgs. | 10,000 Lbs./4536 kgs. |
| Height Dimensions | Double | Triple | Quad |
|---|---|---|---|
| Carriage Height (Lowered) | 6” – 55.375” | 6” - 96.375” | 6” - 137.375” |
| Carriage Height (Raised) | 15.2 cm – 148.3 cm | 15.2 cm – 244.8 cm | 15.2 cm – 348.9 cm |
| Overall Height: (Top of Rack) | 127.5”/323.9 cm | 160.375”/407.4 cm | 191.75”/487 cm |
| Overall Height: (Top of Mast) | 134.5”/341.6 cm | 167.375”/425.1 cm | 198.75”/504.8 cm |
| Operator Platform Height (AFF) | 18” – 50.25” 45.7cm – 127.6 cm | 18” – 91.25” 45.7cm – 231.8 cm | 18” – 132.25” 45.7cm – 335.9 cm |
| Service Weight | PCE-1-40 | PCE-2-24 | PCE-2-32 | PCE-2-40 |
|---|---|---|---|---|
| Double Level | 8400 Lbs./3810 kgs. | 8600 Lbs./3901 kgs. | 8900 Lbs./4037 kgs. | 9200 Lbs./4173 kgs. |
| Triple Level | 8700 Lbs./3946 kgs. | 8900 Lbs./4037 kgs. | 9200 Lbs./4173 kgs. | 9500 Lbs./4309 kgs. |
| Quad Level | 9000 Lbs./4082 kgs. | 9200 Lbs./4173 kgs. | 9500 Lbs./4309 kgs. | 9800 Lbs./4445 kgs. |
