Overview

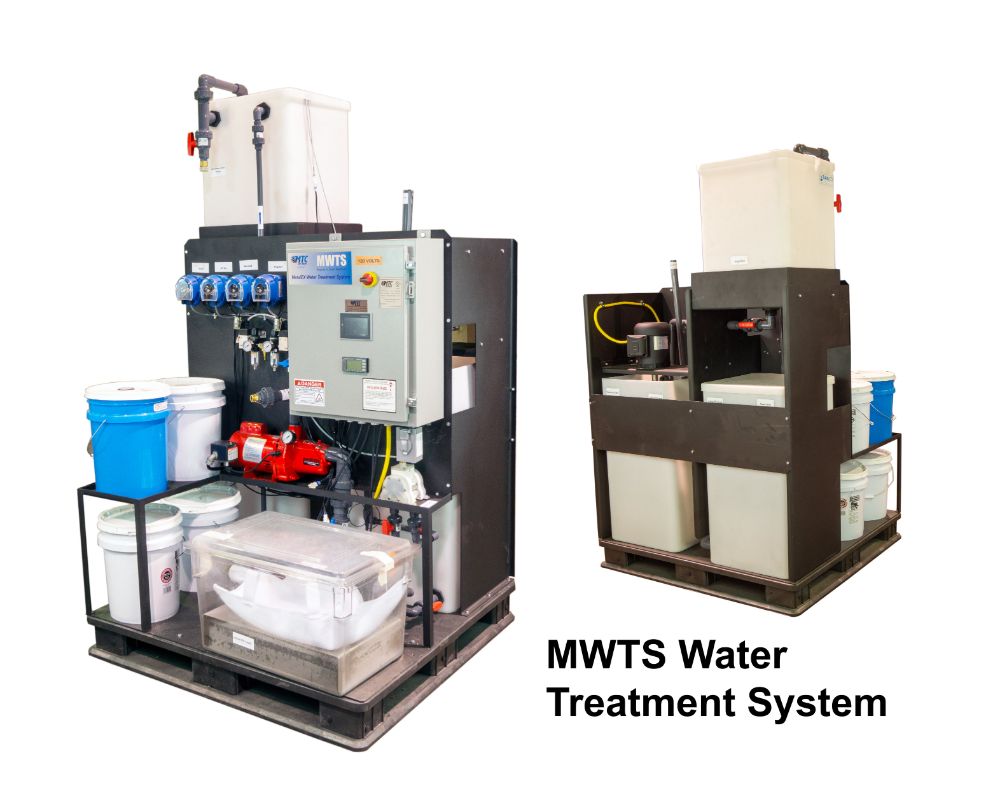

MTC’s H203 Water Recirculation System monitors and maintains pH levels by controlling neutralizer injection and recirculation as required. The H203 filters water both internally and as returned from the battery wash system.
| Features | Benefits |
|---|---|
| The H203 Water Treatment System can be combined with an MTC Wash Cabinet or MTC Wash Rack to form a closed loop recirculation system. | Reduces environmental impact by reusing battery wash water. |

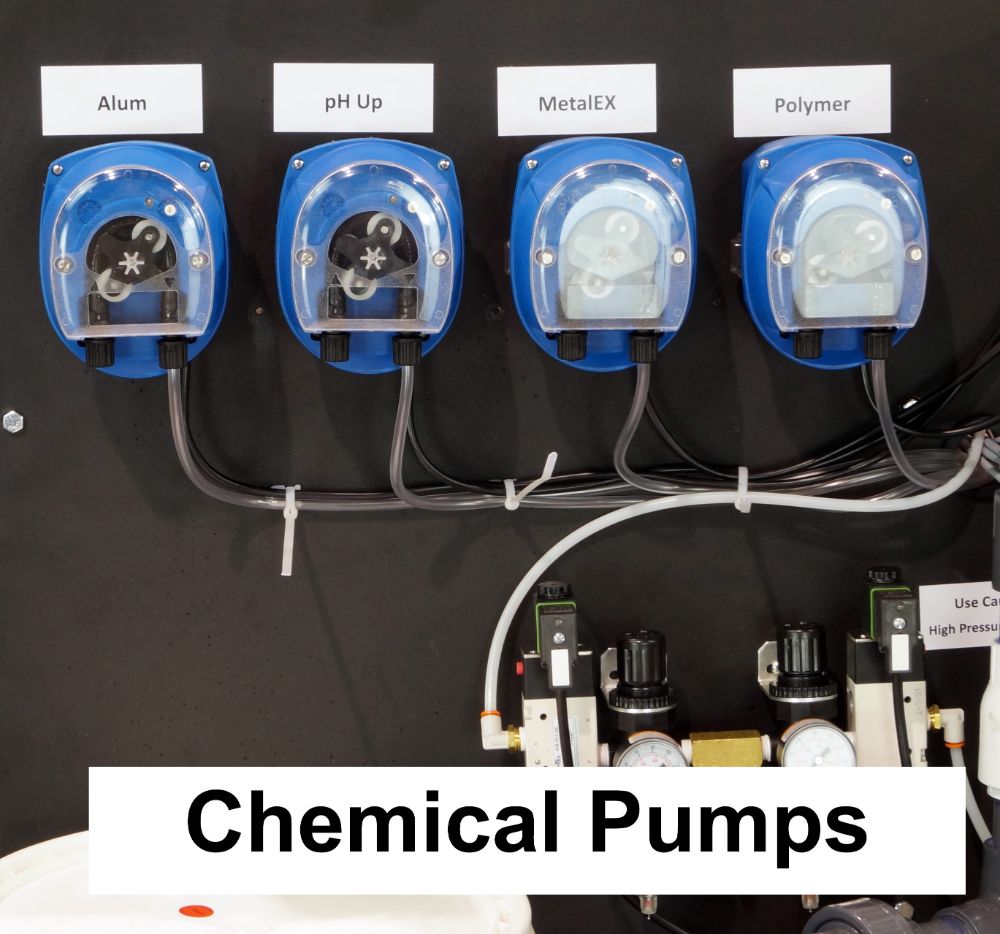

| Monitors water characteristics during the recirculation period and adds LNC. | Maintains the proper pH level. |

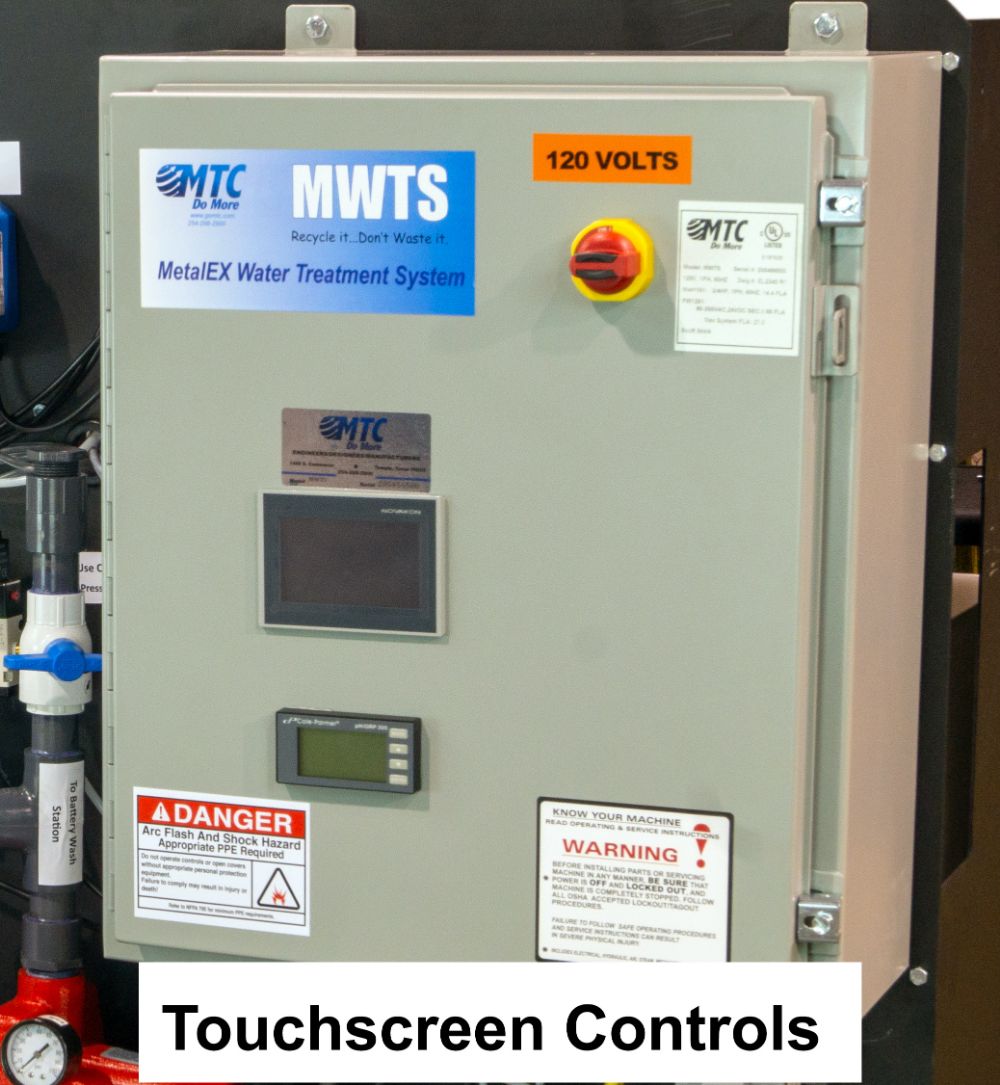

| Touchscreen Interface | Provides for simple operation and alerts the operator to conditions requiring correction. |
Notes:
Specification subject to change without notice.
Utilities and air supply to be provided by the customer
*Customers are responsible for the proper disposal and handling of contaminated water in accordance with local environmental law.
*Any city/county/state or federal permits required for site construction or operation of the MWTS are the responsibility of the end user.
| Input Requirements | |
|---|---|
| Electrical | 120V 60Hz 1ph - 30 amps |
| Air | ¼” NPT @ 10CFM |
| Water Output | |
|---|---|
| Flow | Up to 12 GPM – (46 LPM) |
| Output Pressure | 50 PSI – (345 kPa) |
| Dimensions | |
|---|---|
| Overall Width | 44 1/2” (1130.3 mm) |
| Overall Depth | 53 1/4” (1352.6 mm) |
| Overall Height | 59” (1498.6 mm) |
