High Frequency Charger Stand

MTC CSHFMM-SS & CHSFMM-DS Series

Battery Handling Equipment | Opportunity Charging Support

Features	Benefits
Made of powder-coated, heavy-duty tube and plate steel.	Assures long life and ease of sanitation.

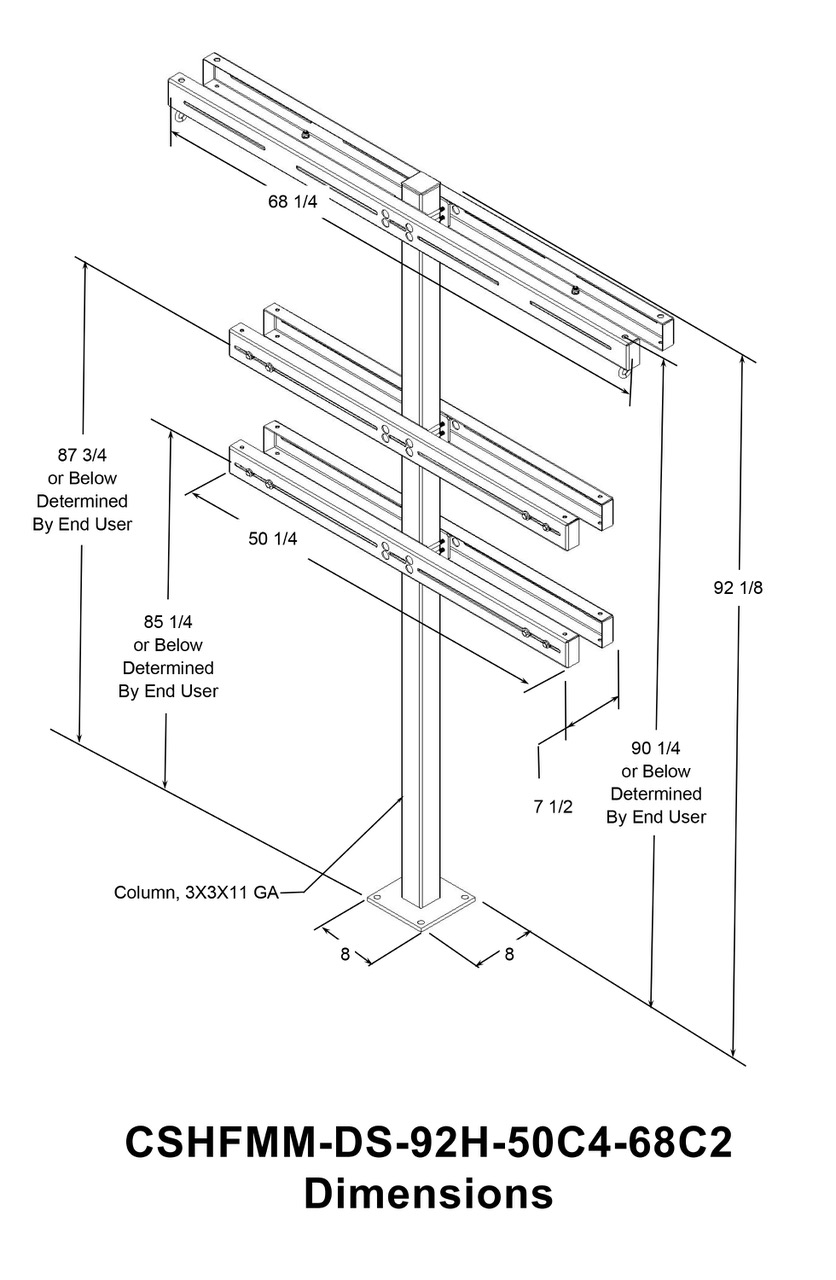

½” seismic foot and 3x3x11 GA steel column	Accommodates multiple opportunity chargers.

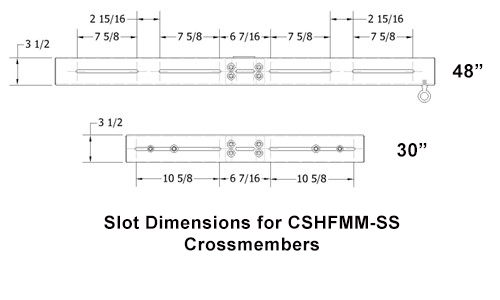

Formed Steel Crossmembers	Allows adjustment of stand to fit almost any charger on the market today
Optional BCR-58H Cable Retractor	Keeps charger leads out of the way.

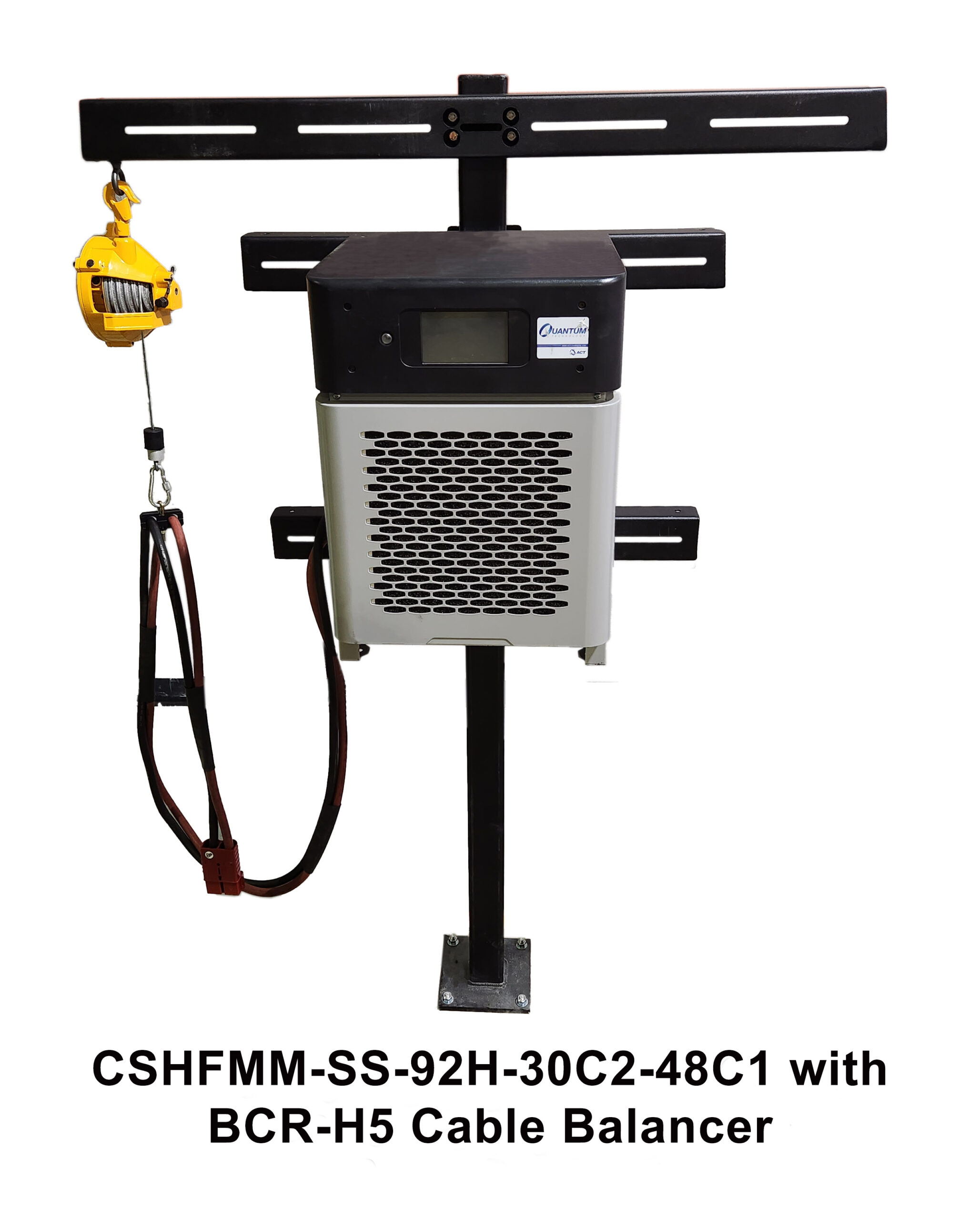

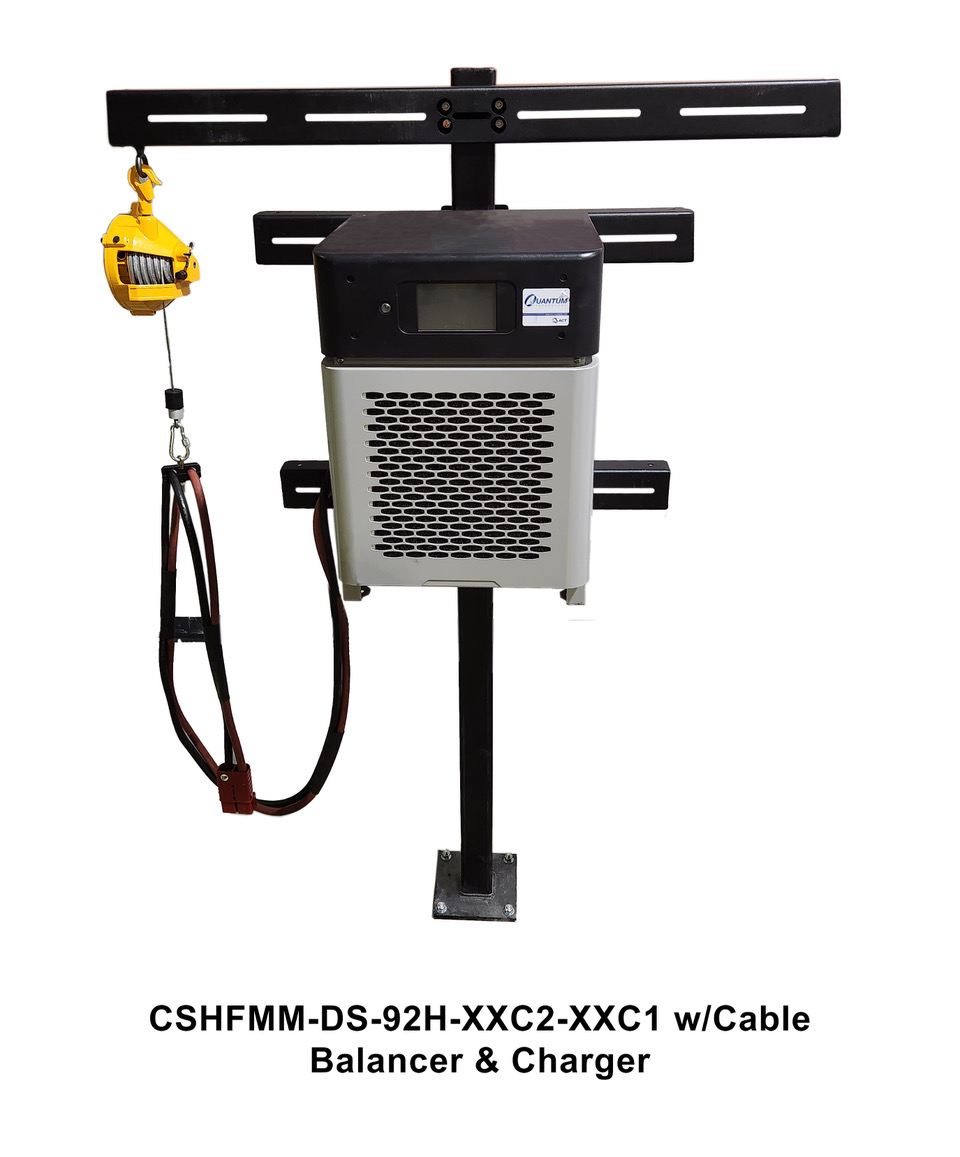

Optional BCR-H5 hanging cable balancer	Keeps charger leads out of the way.

CSHFMM-SS Options include:

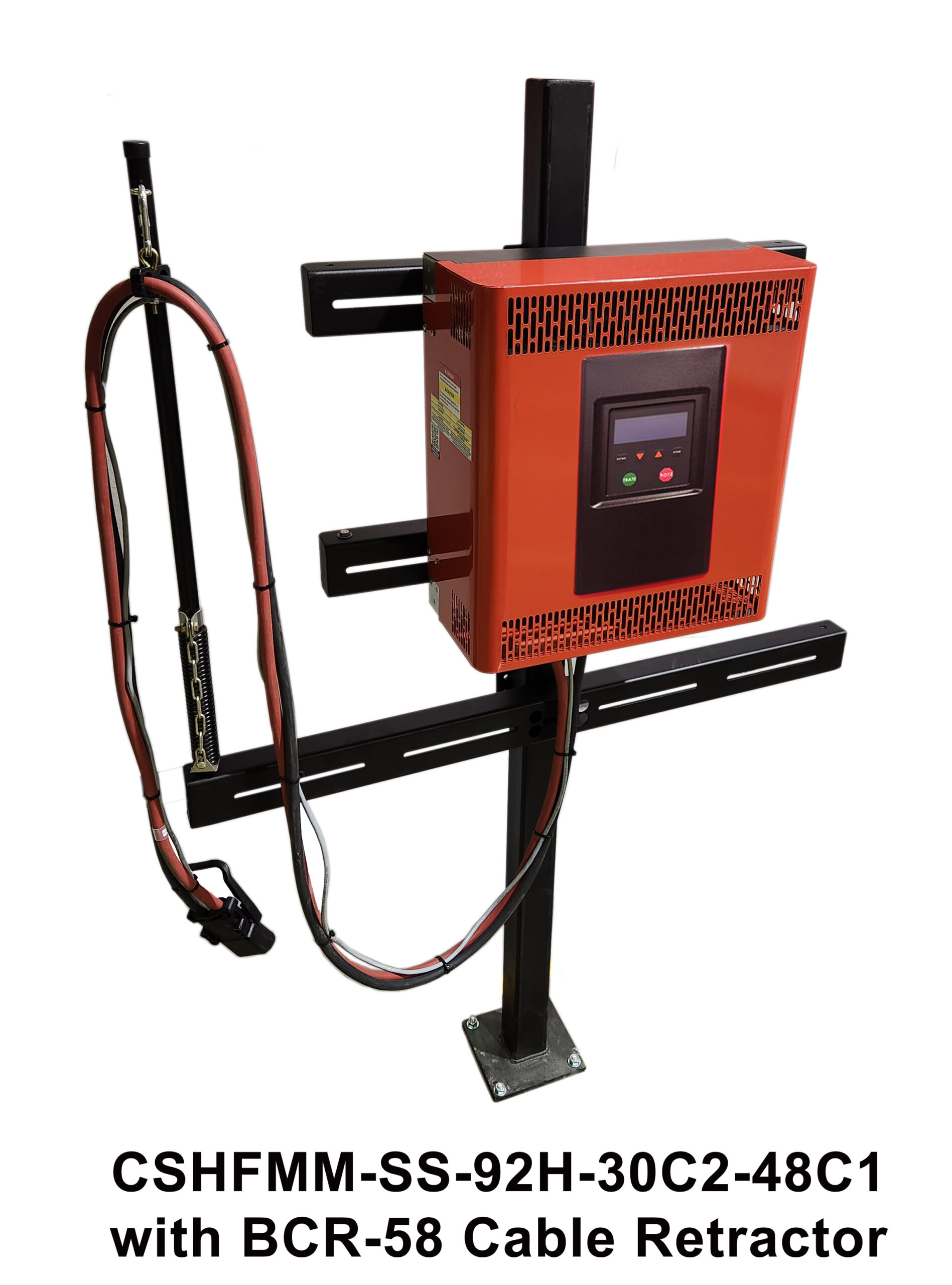

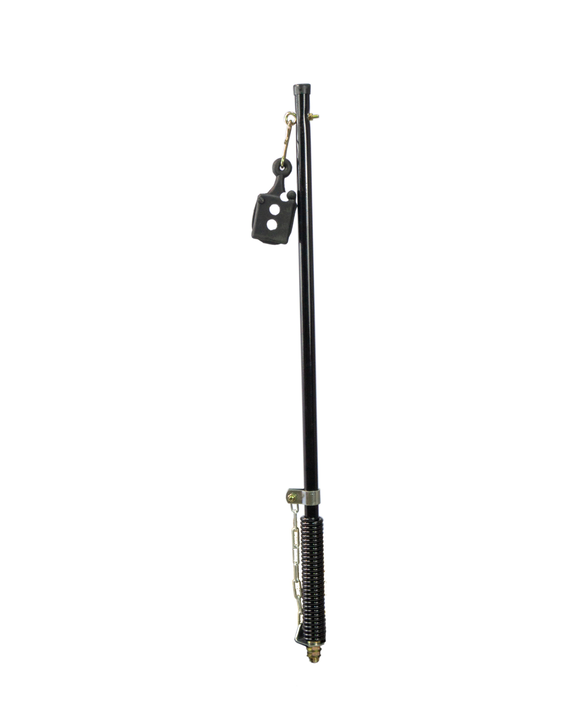

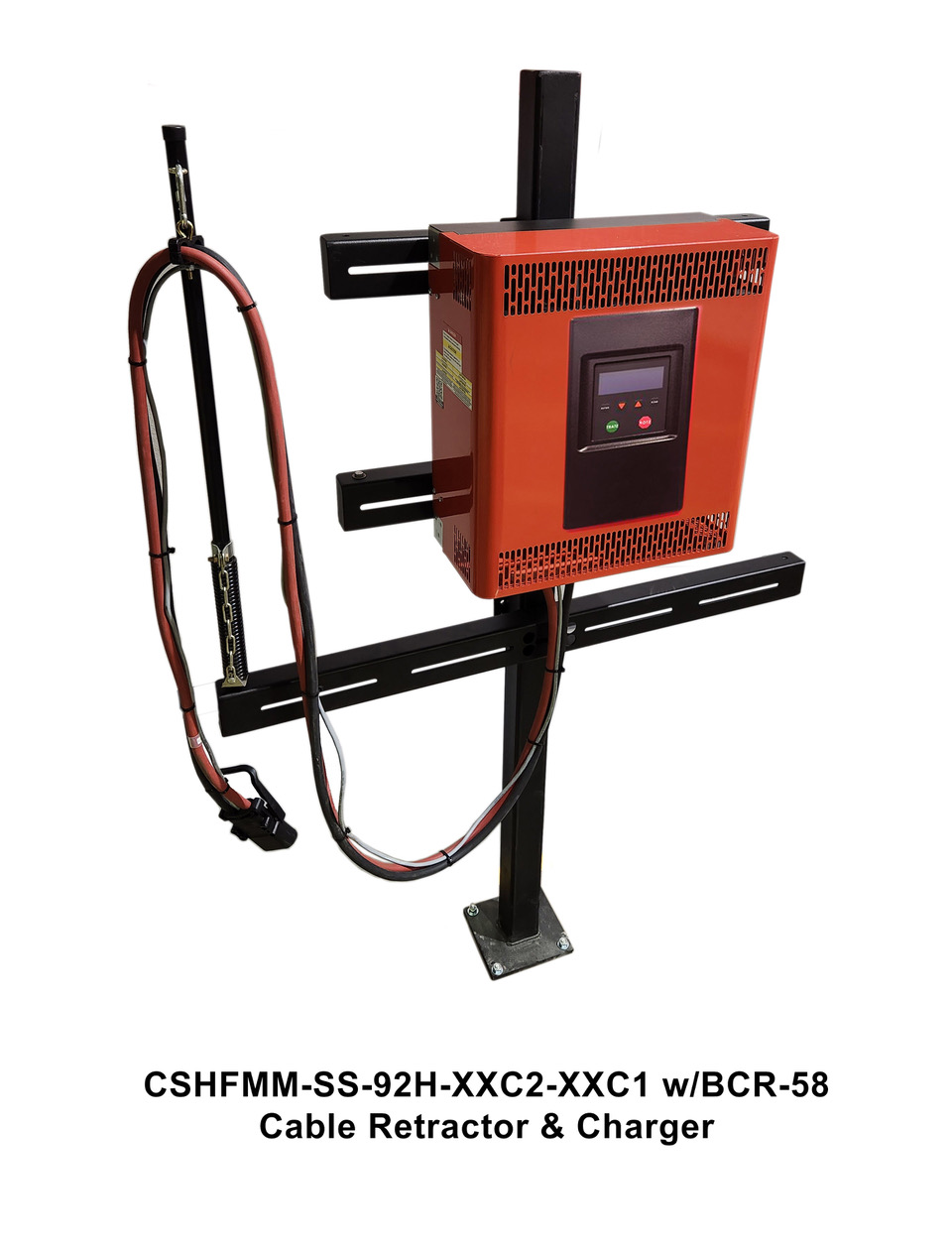

BCR-58 Cable Retractor

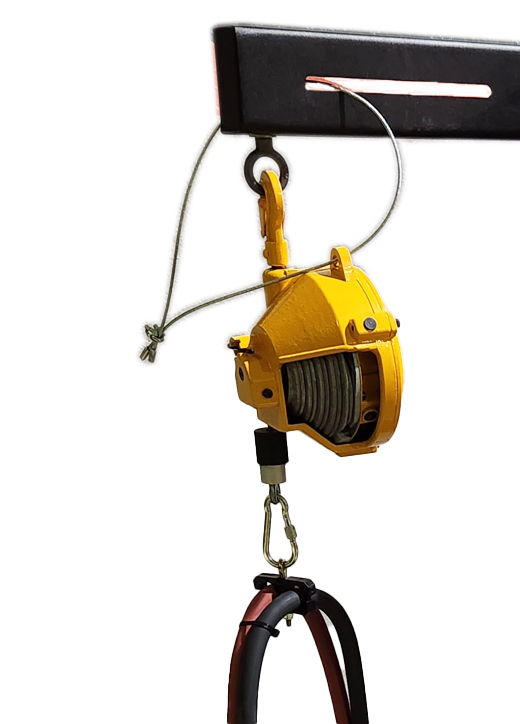

BCR-H5-KIT Cable Balancer

CALL US NOW

Request a Call

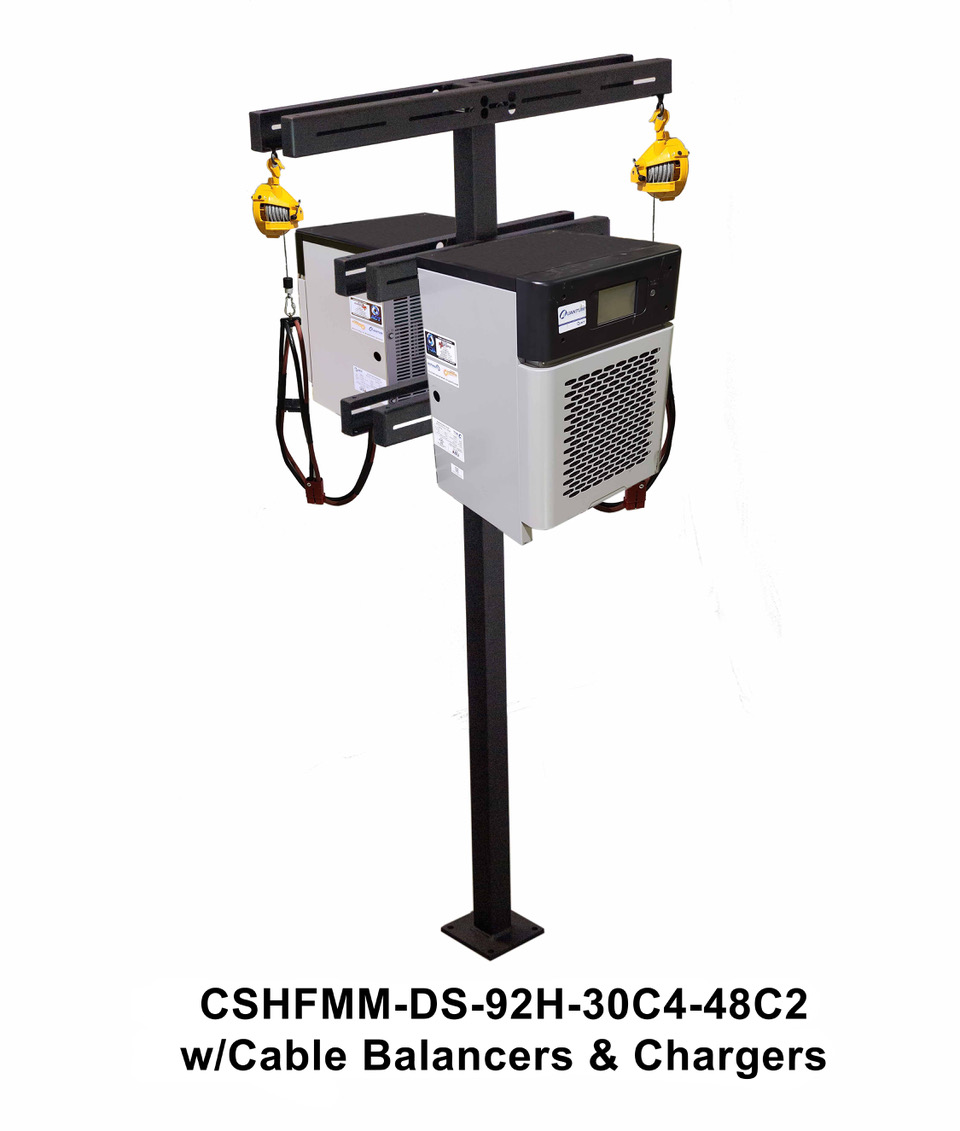

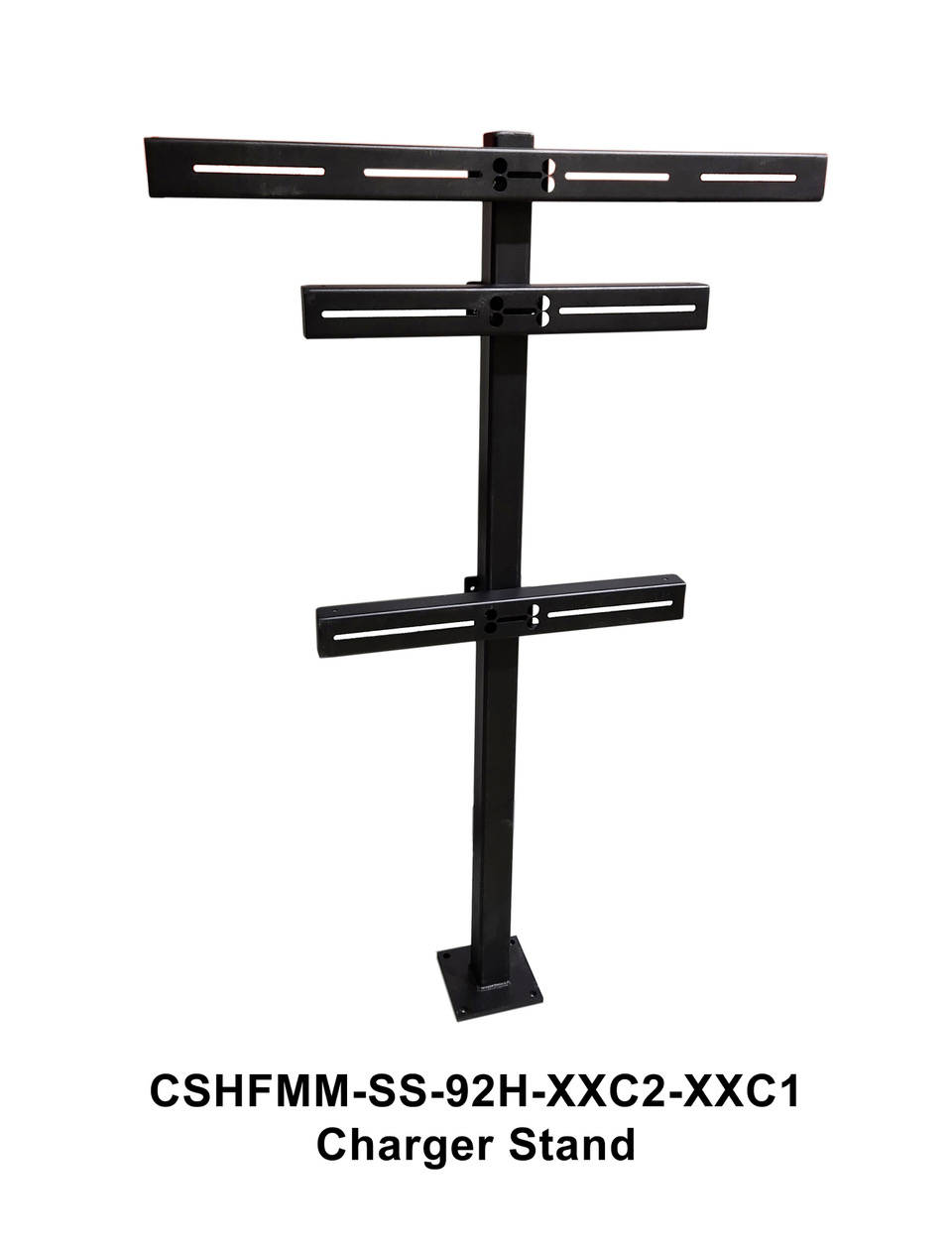

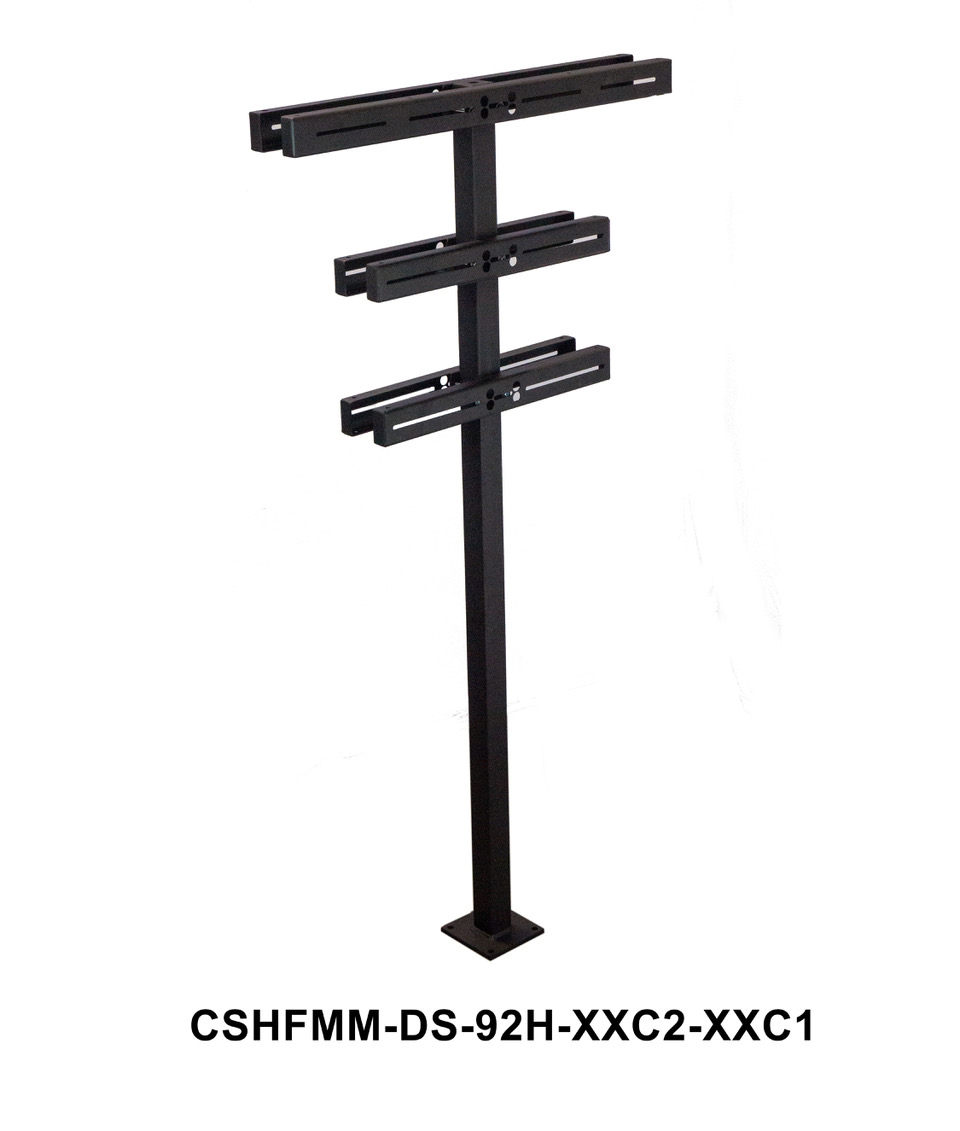

The CSHFMM-SS-92H-XXC2-XXC1and CSHFMM-DS-92H-XXC4-XXC2 are designed to accommodate multiple fast charger models. These units mount to the floor and provide convenient access for opportunity charging. CSHFMM-SS and CSHFMM-DS utilize Adjustable Crossmembers to accommodate most high-frequency chargers on the market today.

Specification

Model	Charger Quantity	Crossmembers	Crossmembers

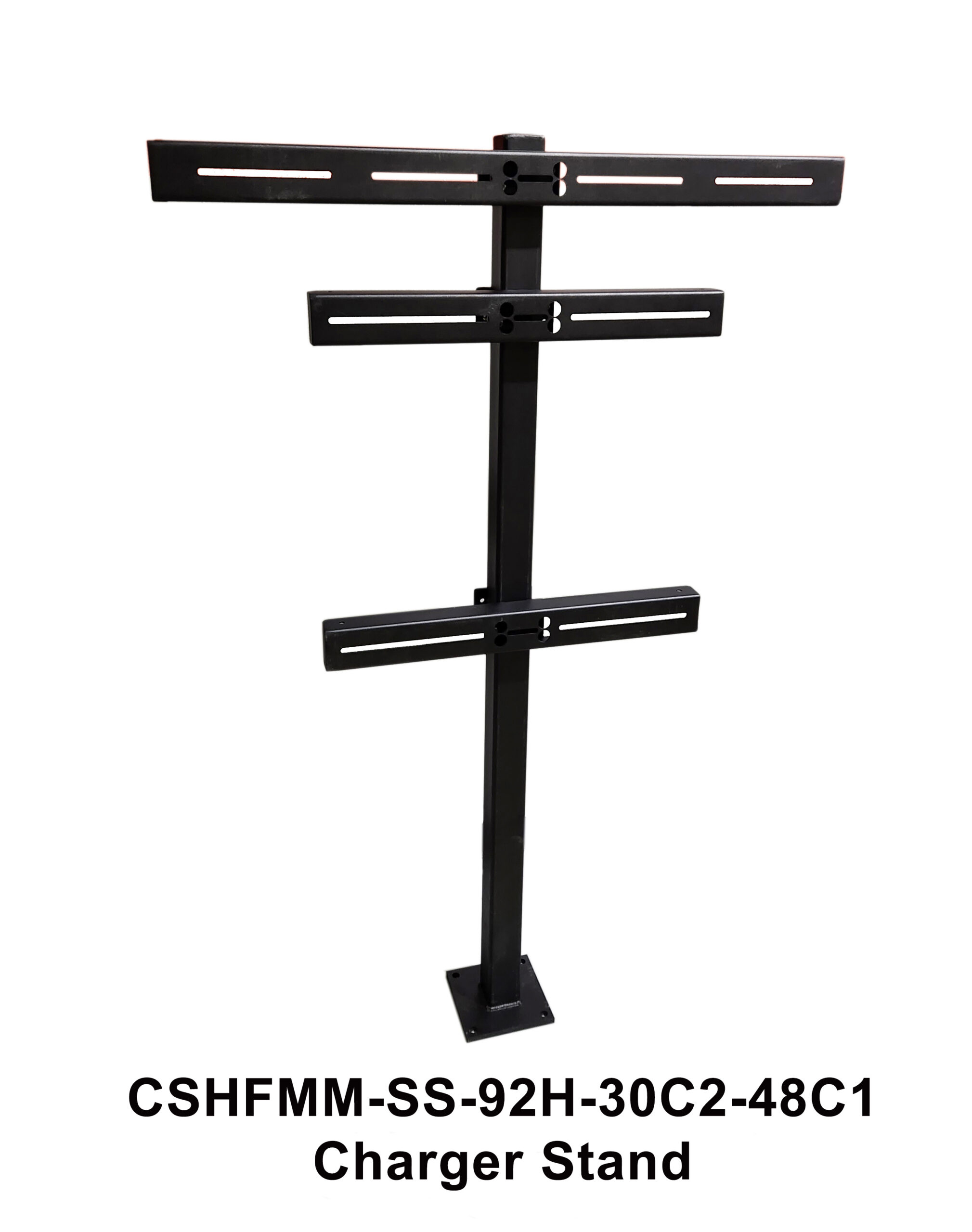

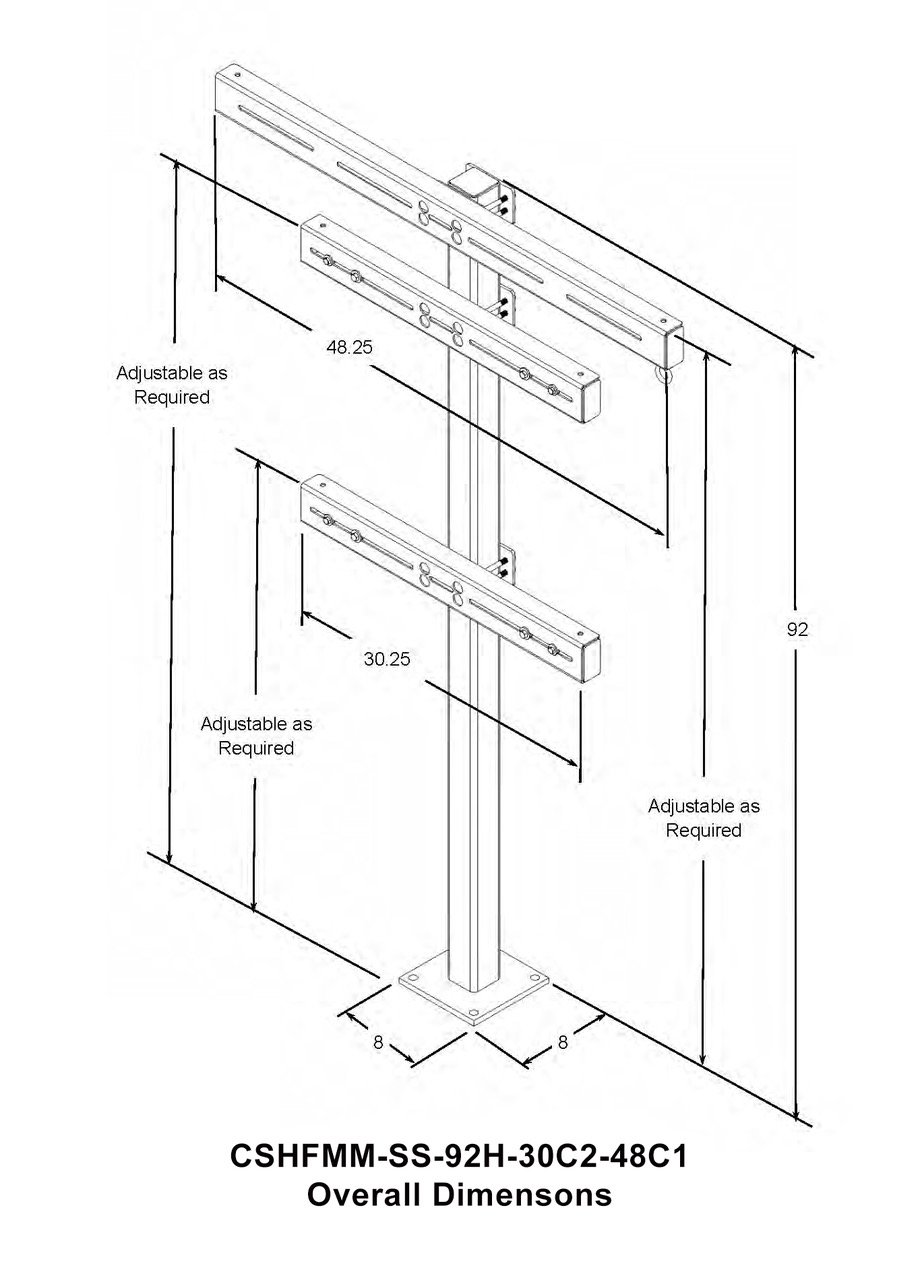

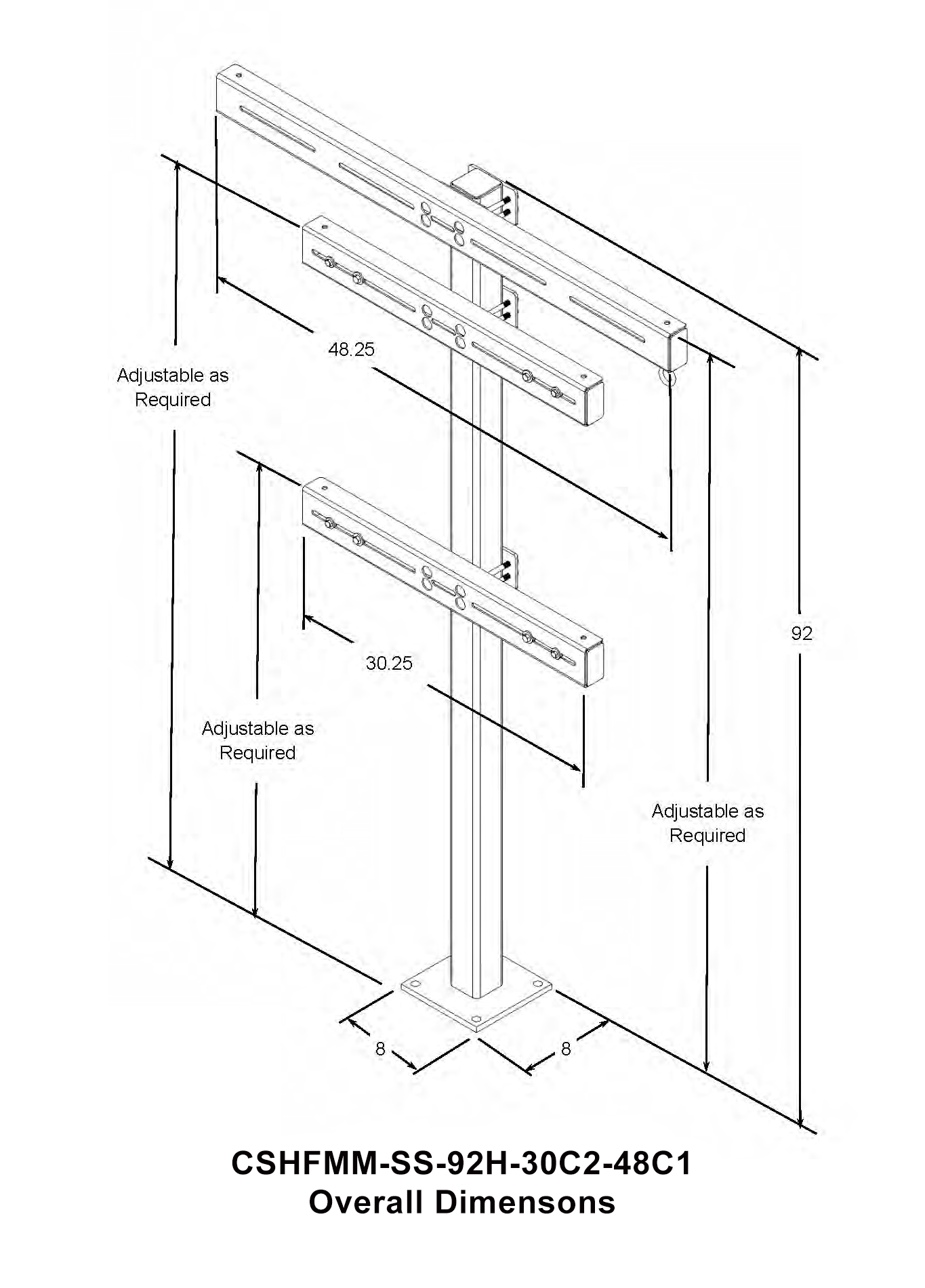

CSHFMM-SS-30C2-48C1 (Single Sided)	1	30” Crossmember 2 ea.	48” Crossmember 1 ea.

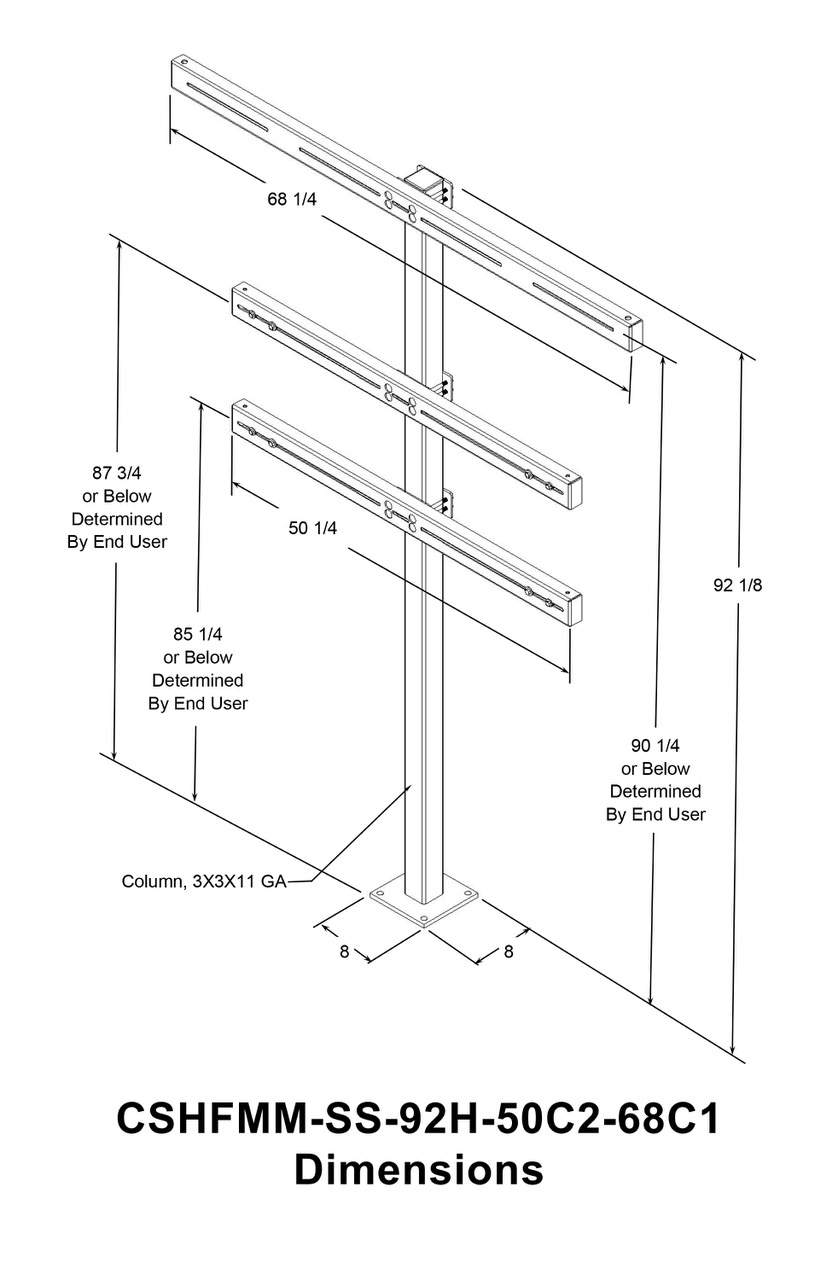

CSHFMM-SS-50C2-68C1 (Single Sided)	2	50” Crossmember 2 ea.	68” Crossmember 1 ea.

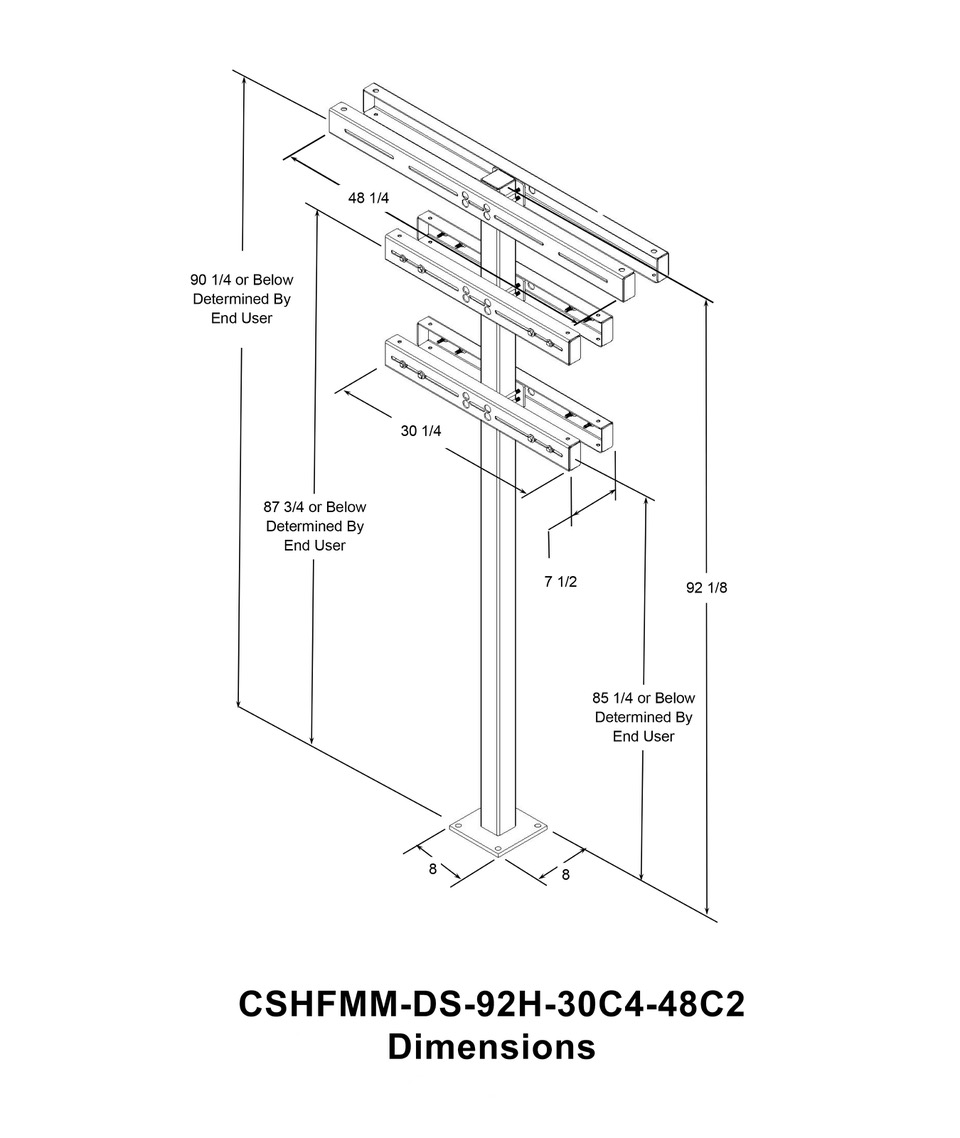

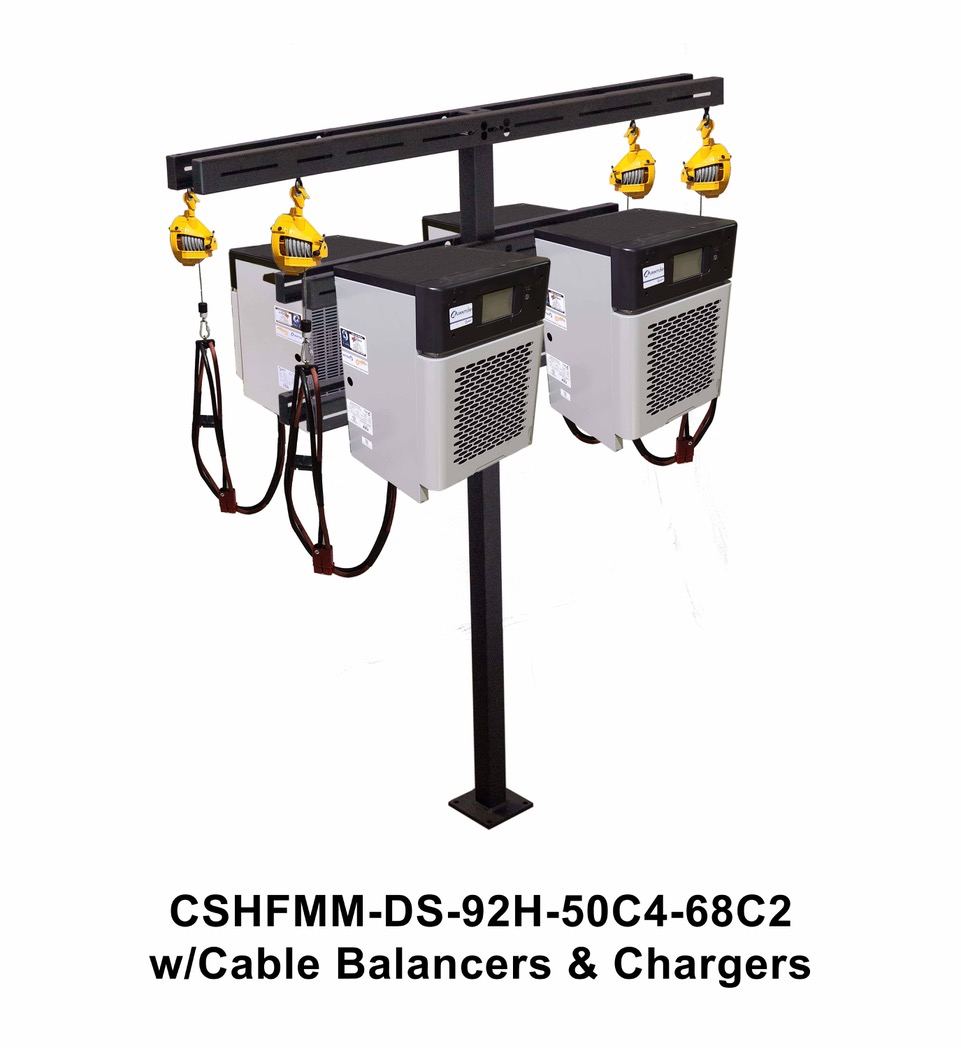

CSHFMM-DS-30C4-48C2 (Double Sided)	2	30” Crossmember 4 ea.	48” Crossmember 2 ea.
CSHFMM-DS-50C4-68C2 (Double Sided)	4	50” Crossmember 4 ea.	68” Crossmember 2 ea.
